How To Build Wall Blueprints With The RedX Walls App

Creating detailed and precise wall plans can be challenging, but the RedX Walls app simplifies the process. This tutorial will guide you through the easiest method I've found using the app, making it suitable for both DIY enthusiasts and professionals alike. With the RedX Walls app, you can efficiently design wall plans that meet your specific requirements.

Measurements Required

Here is the information you will need to enter into the app:

• Stud Height
• Wall Length
• Stud Spacing

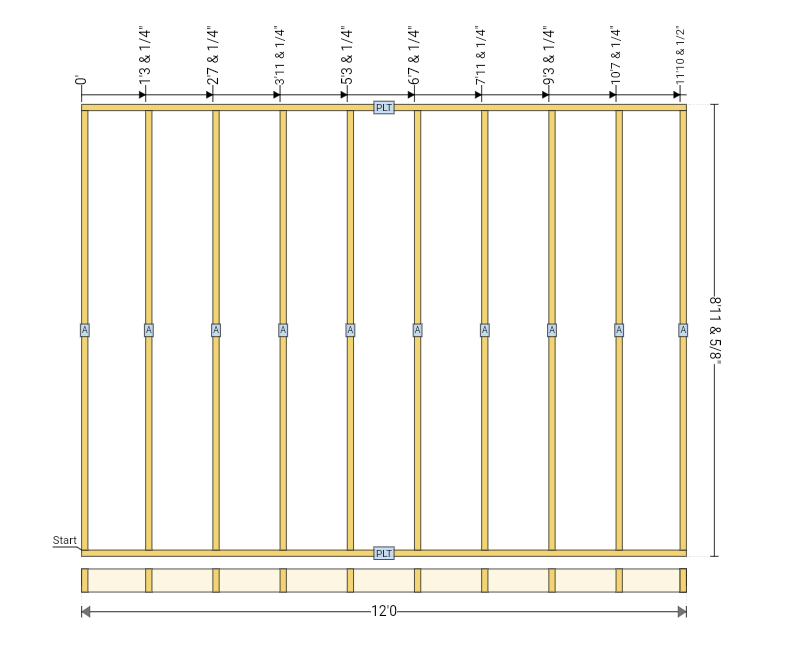

With these three measurements, the app will create a basic plan.

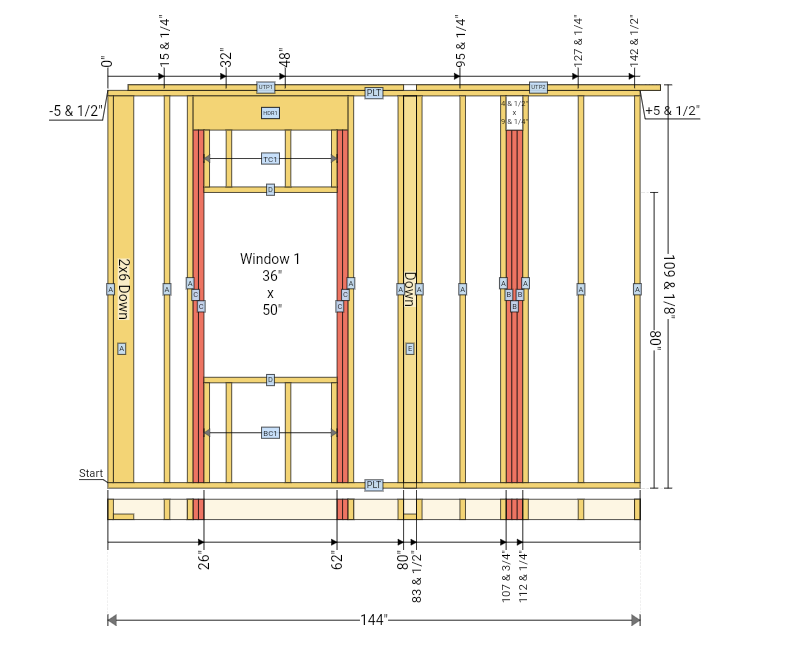

Adding Components

To add components, press the Add Items to Wall button. You can add various components such as:

• Window
• Door
• Intersecting Wall
• Point Load
• Beam Pocket
• Corner Backing
• Upper Top Plate
• Wall Blocking
• Wall Sheathing

For this tutorial i will add a window, upper top plate, beam pocket, intersecting wall and wall sheathing.

Customize Window Opening

After adding the window opening, you can customize its:

• Window Width
• Window Height
• Distance from Wall Start
• Top of Window (height from the bottom of the wall to the top of the window)
• Number of Jack Studs
• Header Details
• Window Radius (for curved windows)
• Window Angle (for angled windows)

Save the window preset if you plan to use it in other walls.

Customize Upper Top Plate

Once added, you can change the:

• Distance from Wall Start
• Distance from Wall End
• Upper Top Plate Thickness

Customize Beam Pocket

After adding the beam pocket, adjust the:

• Distance from Wall Start (to the center of the beam pocket)
• Beam Pocket Width
• Beam Pocket Height

Customize Intersecting Wall

Modify the intersecting wall by setting the:

• Distance from Wall Start
• Intersecting Wall Width
• Show Top Plate Gap
• Add Wall Backing

Customize Point Load

Change the point load details such as:

• Distance from Wall Start (to the center of the point load)
• Number of Studs

Customize Corner Backing

Set the corner backing width and location (start or end of the wall).

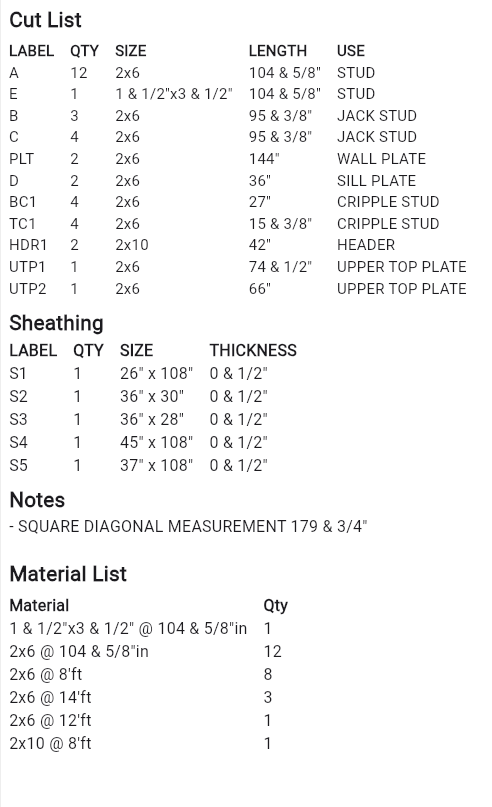

Viewing the Cut List

After adding the components, you can view the cut list. This list provides:

• The label of each component
• The quantity
• The lumber size
• The usage label (e.g., STUD)

The Cut List Includes

• Upper Top Plate Lengths
• Bottom Cripple Blocks for the Window
• Top Cripple Blocks for the Window
• Window Sill Plate Length
• Wall Bottom Plate Length
• Wall Sheathing Measurements (if required)

Important Notes

Under the Notes section, you will find:

• The square diagonal measurement
• First stud center measurement
• Stud spacing measurement

You can add more notes as needed when yous save and export the blueprint.

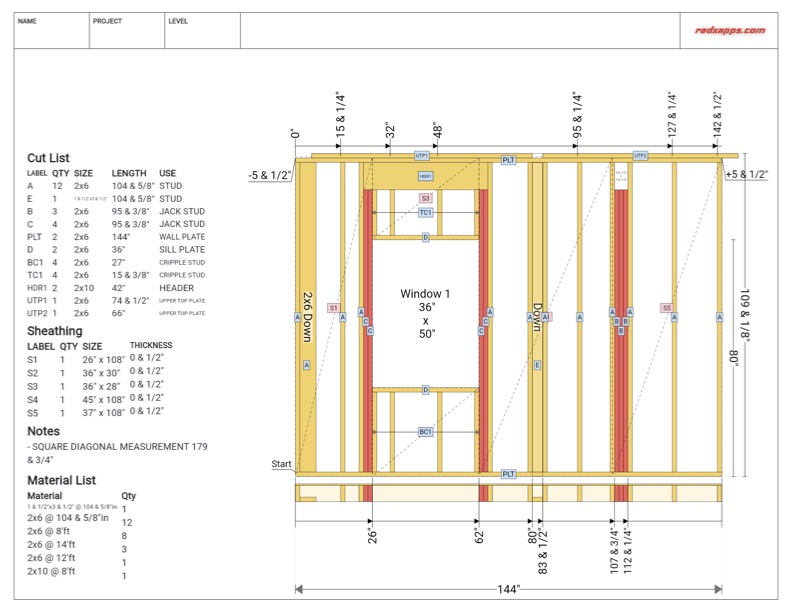

Generating the Final Blueprint

Once you've added and customized all your components, the RedX Walls app will generate the final blueprint for your wall. This comprehensive blueprint includes all the details and measurements you've input, ensuring accuracy for your construction project.

You can utilize the blueprint in several ways to suit your workflow:

• Email: Easily send the blueprint to yourself or your team.
• Print: Create a physical copy for on-site reference.
• Save: Store the blueprint within the app for future use.

These features streamline your workflow and ensure your plans are always accessible.

Conclusion

I hope this tutorial helped you understand how to create wall plans with the RedX Walls app. Try building your own custom wall and explore other features like Rake Walls, Stair Walls, and Tall Walls.

Happy building!
